Home Page

The Device Visibility home page provides a comprehensive view of your connected devices. The currently supported device types are:

  • Datalogic Handheld Scanners (for more information, see Supported devices)
  • Edge devices

From the Device Visibility home page, you can have an overview of all the devices registered to the platform, filter them by family, and manage their visibility.

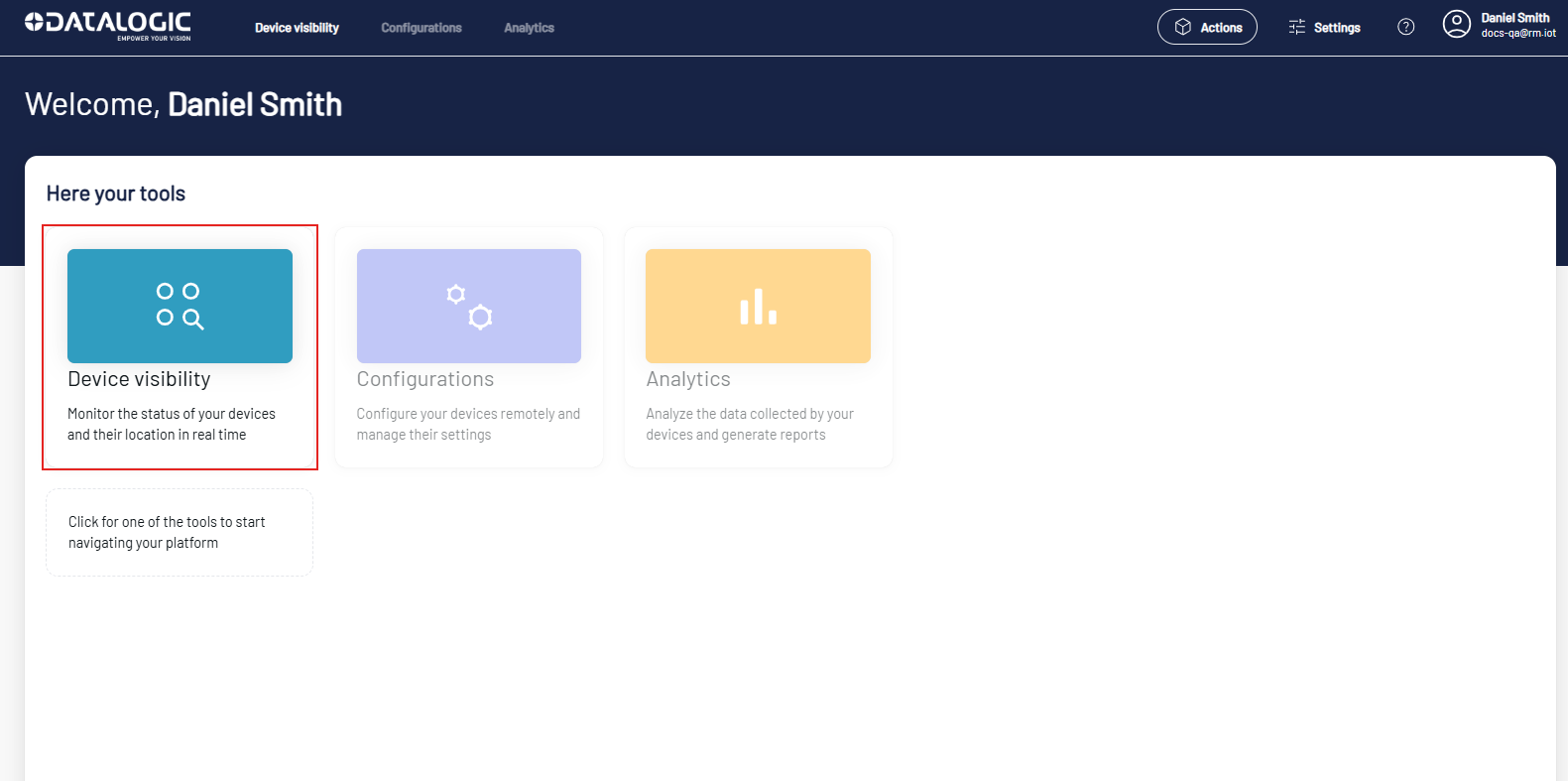

Click the Device Visibility button to open the Device Visibility tab.

Device Visibility Button

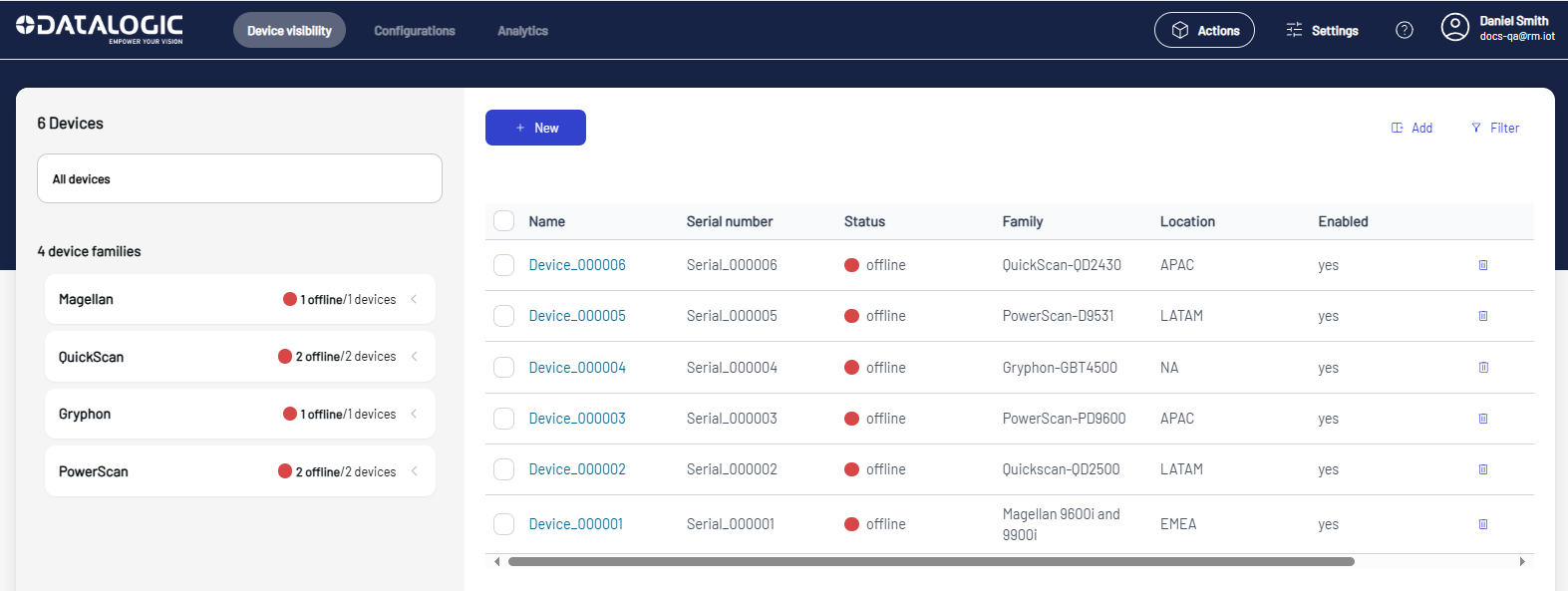

The Device Visibility tab shows all the devices registered to the platform, and allows to add/remove devices.

Device Visibility Tab

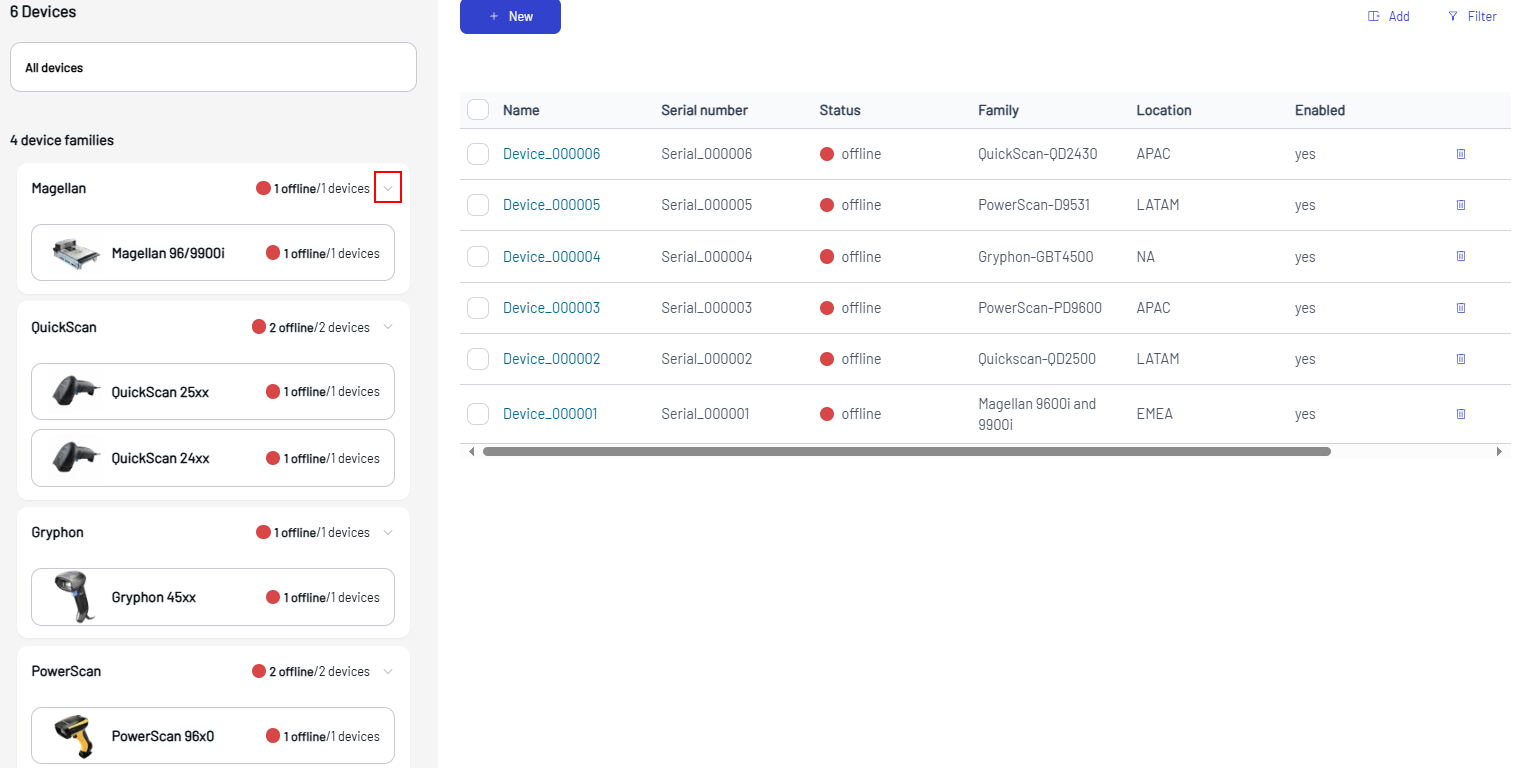

The first list on the left shows the devices arranged by product families. Click the arrow to expand a family group and display sub-families.

Device Visibility Families

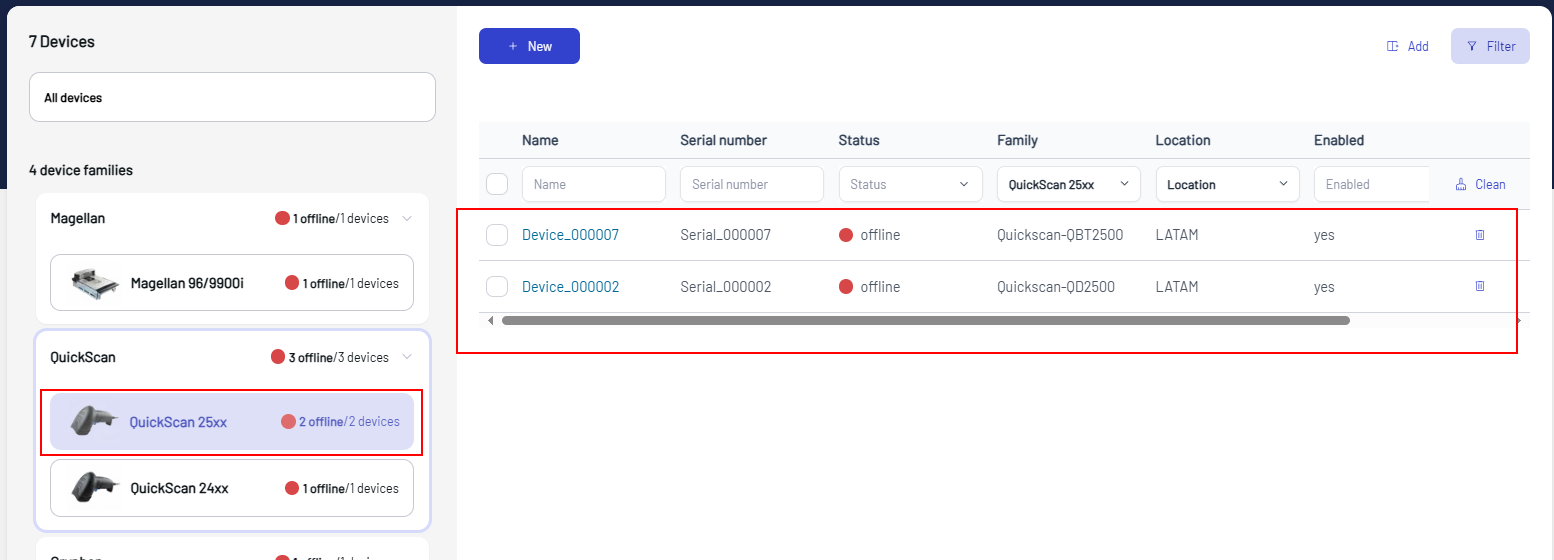

Click a sub-family to filter the related devices in the device visibility table.

Device Visibility Sub-families

The device visibility table shows the following information for each individual device:

Name - the name you assigned to the device.

Serial Number - the device serial number.

Status - the device status: online/offline.

Family - the device sub-family

Location - the location you assigned to the device.

Enabled - yes/no. A registered device is enabled by default to receive messages.

Provisioned - yes/no. Install and run the Aladdin SDS to allow the registered device to send messages and to change the device status to online and the Provisioned status to yes.

Click the dustbin icon on the right to remove the selected device.

Filter Settings​

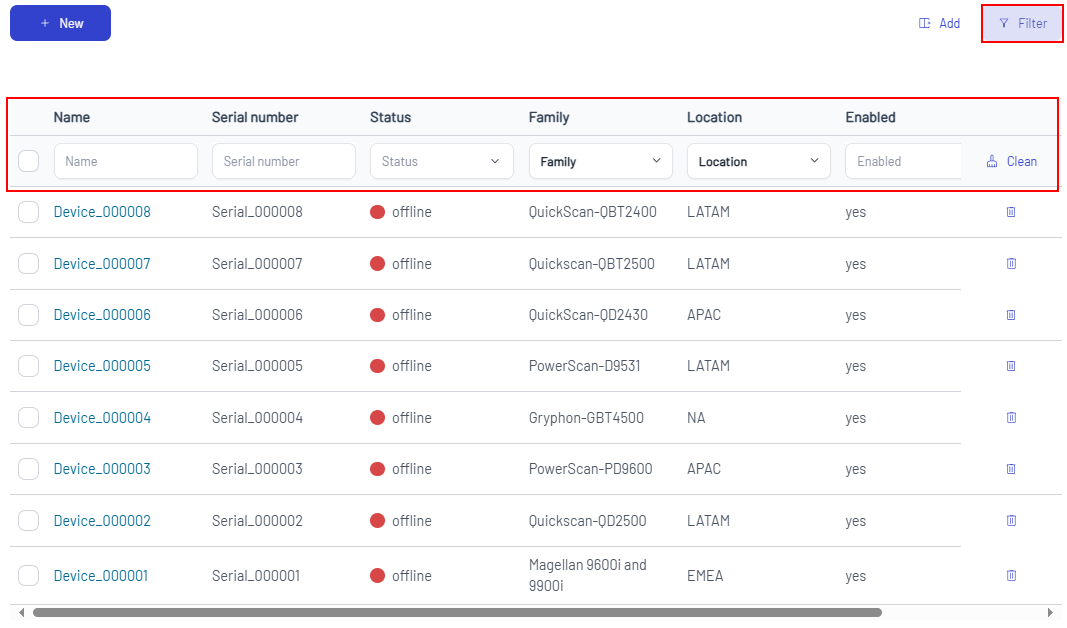

Click the Filter button to apply the filters to the table. You can filter your search by Name, Serial number, Status, Family (you can select one or more families or sub-families), Location, Enabled, and Provisioned status.

To clear the selections, click Clean.

Filter

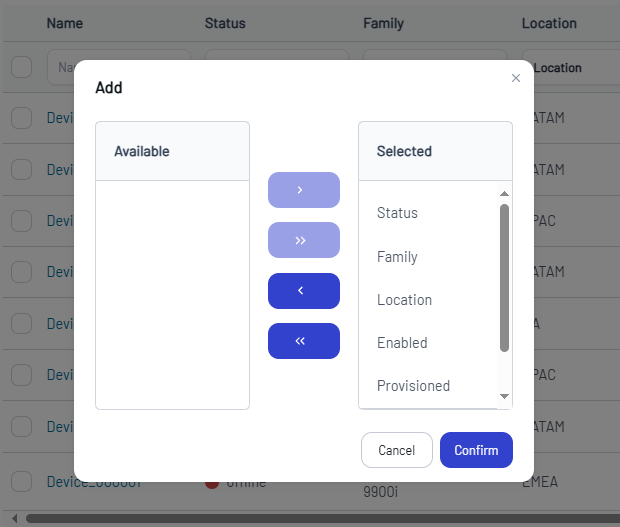

Click the Add button to show/hide one or more items.

Add Filter
